001

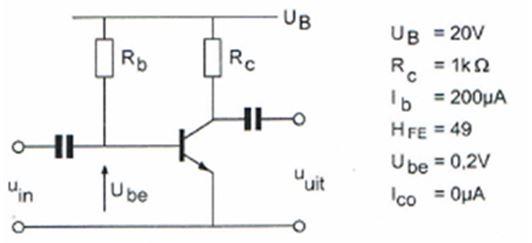

De spanning over de weerstand Rc is:

a   20 V
b   0.2 V
c   19.8 V
d   9.8 V

Ib = 200 microA
Hfe = 49
Ie = 49*200exp-6=9.8 mA

Ic = Ie = 9.8 mA
URc = IRc * Rc
URc = 9.8 mA * 1 Kohm = 9.8 V

039     Versterking Tr

┘
