Serie-kring De stroom is overal gelijk

Z = Ѵ R² + ( X - X )²

XC 1 / (2.pi.f.C)

XC= 1 / ( 2 x 3.14 x 100 x 70^exp-6) = 22.75 Ohm

XL = 2.pi.f.L

XL = 2 x 3.14 x 100 x 200^exp-3 = 125.6 Ohm

Z = Ѵ R² + ( X-X )²

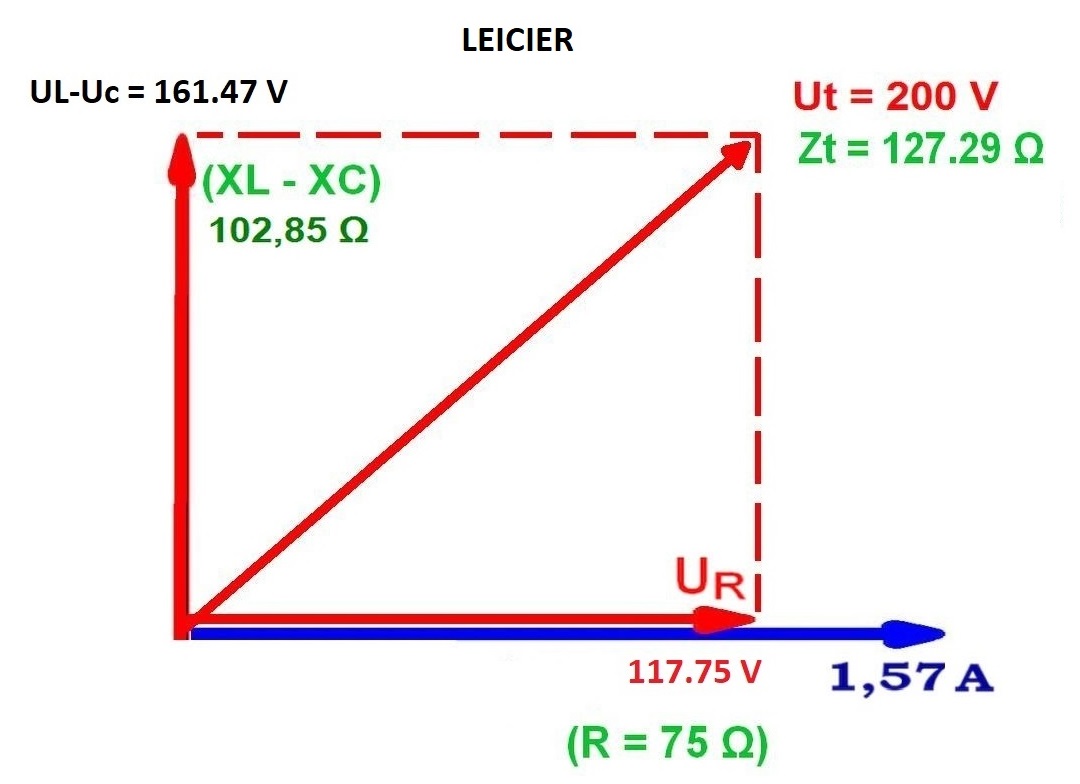

Z = Ѵ 75² + (125.6-22.75)² = 127.29 Ohm

SERIE-kring

>>>

>>>

>>>

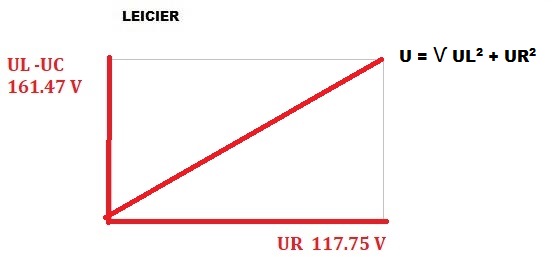

U = Ѵ UL² + UR²

U = Ѵ 161.47² + 117.75² = 199.8 = 200 V

I = U / Z = 200 / 127.29 = 1.57 A

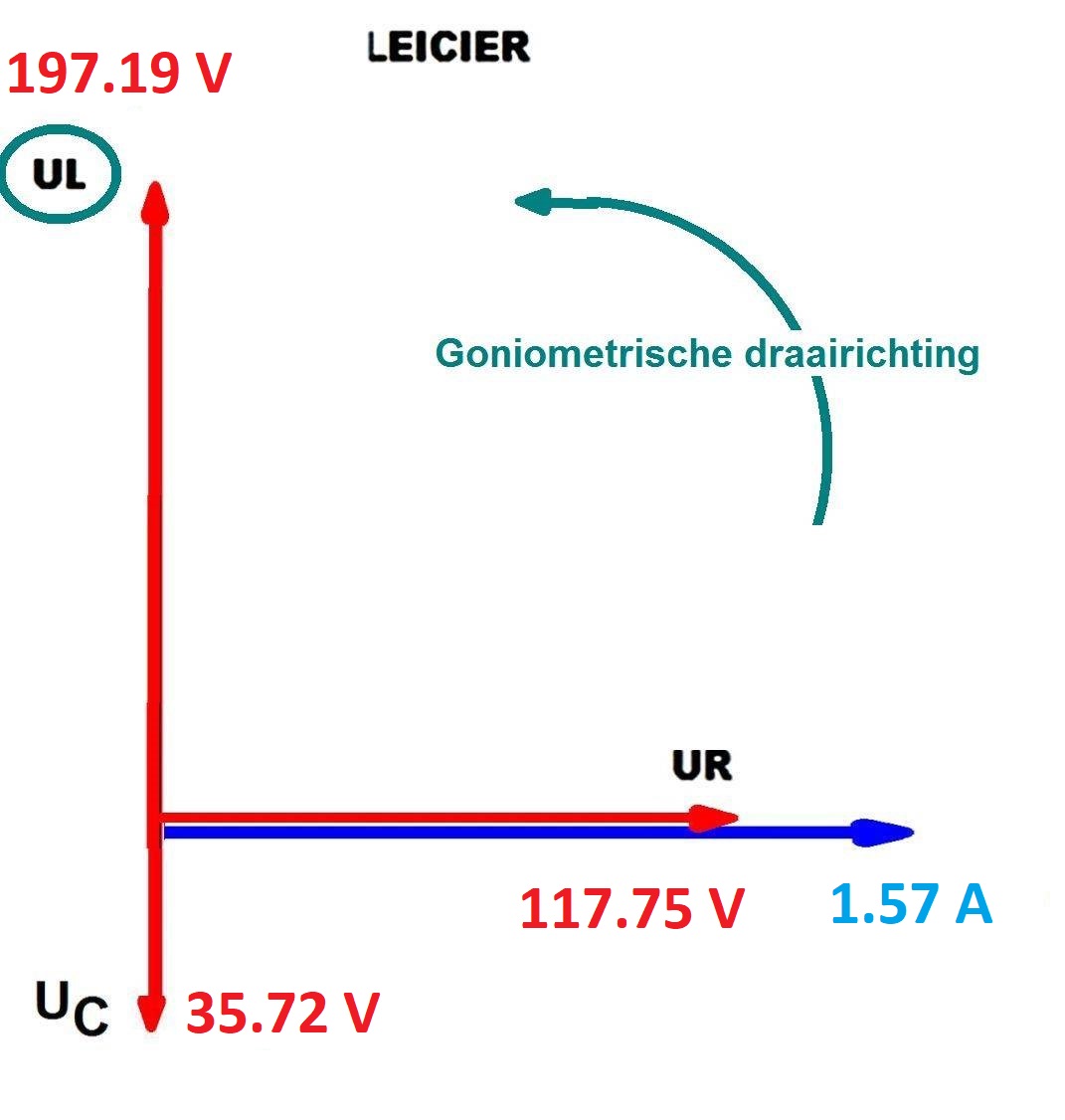

UR = I x R      1.57 x 75     = 117.75 V

UC = I x XC   1.57 x 22.75 =   35.72 V

UL = I x XL    1.57 x 125.6 = 197.19 V

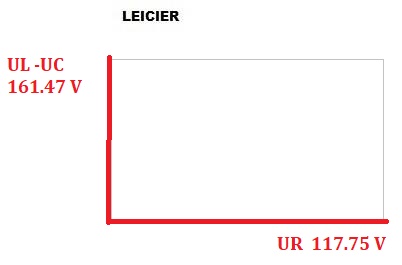

Nu het tekenen van de karakters

jj_03_02_003 +1

┘

Figuur 2

Figuur 3

Figuur 4

Figuur 5

Figuur 1
